With the rapid advancement of modern engineering and environmental management, the demand for reliable, cost-effective waterproofing solutions has surged. PVC liner, also known as Polyvinyl Chloride geomembranes, have emerged as a versatile geosynthetic material widely adopted across industries for their impermeability, flexibility, and affordability. Priced between $0.30 and $1.50 per square meter, PVC liner offer a compelling alternative to traditional materials like concrete or clay, reducing seepage by 95–99% and installation costs by 20–30% (BPM Geosynthetics, 2025). This comprehensive guide explores the composition, specifications, key features, types, applications, and installation of PVC liners, providing data-driven insights for engineers, contractors, and project managers.

1. What Is A PVC Liner?

A PVC liner is a synthetic, impermeable geomembrane made from Polyvinyl Chloride, designed to prevent water or liquid seepage in containment systems. Typically manufactured in rolls (3–15 m wide, 10–60 m long) with thicknesses ranging from 0.2 mm to 2.0 mm, PVC liners are flexible, lightweight (0.5–2 kg/m²), and resistant to chemicals, UV radiation, and punctures. They achieve an anti-seepage coefficient of 1 x 10⁻¹¹ cm/s, ensuring 99.9% water retention when properly installed (ASTM D7176). Used in applications like decorative ponds, irrigation canals, and landfill liners, PVC liners reduce water loss by 95% in aquaculture and irrigation projects and ensure 90% environmental compliance in waste containment (Geosynthetics Magazine, 2024). Their ease of installation and cost-effectiveness make them a preferred choice in 20% of global geomembrane applications (Grand View Research, 2024).

Composition of PVC Liners

PVC liners are engineered with:

  • Polyvinyl Chloride (PVC): 90–95% of the composition, providing flexibility and impermeability.
  • Plasticizers: 5–10%, enhancing flexibility to achieve 200–400% elongation (ASTM D882).
  • Additives: UV stabilizers (1–2%), antioxidants, and anti-microbial agents ensure durability and resistance to degradation.
  • Fillers: Calcium carbonate or talc (2–5%) to improve mechanical properties and reduce costs.

These components meet GRI-GM17 standards, ensuring performance in diverse environmental conditions (Geosynthetic Institute, 2024).

Key Specifications and Parameters

PVC liners are defined by technical parameters that ensure suitability for various applications:

  • Thickness: 0.2–2.0 mm (8–80 mil), with 0.5–1.0 mm used in 70% of applications (ASTM D5199).
  • Tensile Strength: 6–20 MPa, sufficient for low-to-moderate stress environments (ASTM D882).
  • Puncture Resistance: 100–500 N, protecting against aggregate damage (ASTM D4833).
  • Hydraulic Conductivity: <1 x 10⁻¹¹ cm/s, ensuring 99.9% impermeability (ASTM D7176).
  • Elongation: 200–400%, allowing conformity to irregular surfaces (ASTM D882).
  • UV Resistance: Retains 50% strength after 2000 hours of exposure (ASTM D7238).
  • Chemical Resistance: Resists pH 2–12, suitable for wastewater and chemical containment (ASTM D5322).
  • Temperature Range: -30°C to +70°C, adaptable to most climates.

These specifications make PVC liners 20% more flexible than HDPE and 30% cheaper than reinforced geomembranes, ideal for small-to-medium projects (BPM Geosynthetics, 2025).

Flexible PVC Liner for Agricultural Irrigation Pond
BPM Leading Geomembrane PVC Liner Manufacturer

2. Key Features of PVC Liner

PVC liners offer distinct advantages that enhance their suitability for water and waste containment:

  • High Flexibility: 200–400% elongation enables adaptation to uneven terrains, reducing stress cracking by 30% compared to HDPE (ASTM D882).
  • Cost-Effectiveness: Priced at $0.30–$1.50/m², PVC liners reduce project costs by 20–30% compared to concrete or clay liners (Geosynthetics Magazine, 2024).
  • Chemical Resistance: Resists acids, alkalis, and microbial degradation, ensuring 90% performance in harsh environments (ASTM D5322).
  • Ease of Installation: Lightweight (0.5–2 kg/m²) and weldable, reducing installation time by 25% compared to HDPE (World of Water, 2025).
  • Environmental Safety: Non-toxic and fish-safe, compliant with NSF/ANSI 61 for potable water applications.
  • UV Stability: Retains 50% strength after 2000 hours, suitable for exposed applications like ponds (ASTM D7238).

These features contribute to a 15–20-year lifespan in exposed conditions and 30–50 years when buried (Geosynthetic Institute, 2024).

3. Types of PVC Liner

PVC liners are available in various configurations to meet specific project needs:

3.1 PVC Liner – Standard PVC Liners

Standard PVC liners (0.2–1.0 mm) are cost-effective ($0.30–$0.80/m²), used in decorative ponds and small reservoirs. They offer 200–300% elongation and are chosen for 50% of landscaping projects (The Pond Guy, 2025).

3.2 PVC Liner – Reinforced PVC Liners

Reinforced with polyester or fiberglass scrim, these liners (0.5–1.5 mm) provide 10–15 MPa tensile strength and cost $0.50–$1.50/m². Used in 20% of applications like wastewater ponds, they resist punctures 30% better than standard PVC (BPM Geosynthetics, 2025).

3.3 PVC Liner – Fish-Safe PVC Liners

Formulated with non-toxic plasticizers, fish-safe PVC liners ($0.40–$1.00/m²) are used in 15% of aquaculture projects, ensuring 100% safety for aquatic life (Aquaculture Magazine, 2025).

3.4 PVC Liner – Textured PVC Liners

Textured liners (friction angle >15°) enhance slope stability by 10–20%, costing $0.50–$1.20/m². They are used in sloped reservoirs and canals (Solmax, 2025).

3.5 PVC Liner – Preformed PVC Liners

Preformed liners, molded to specific shapes, reduce installation time by 20% and cost $0.60–$1.50/m². They are ideal for complex pond geometries (GSC Geosynthetics, 2025).

4. Applications of PVC Liner

PVC liners are used in 20% of global geomembrane applications, driven by their affordability and flexibility (Grand View Research, 2024). Below are key applications, supported by industry examples:

4.1 PVC Liner – Decorative Ponds and Water Features

PVC liners are used in 50% of ornamental pond projects, preventing seepage and enhancing aesthetics. A 2024 Canadian project used a 0.5 mm fish-safe PVC liner at $0.40/m², maintaining water quality for koi ponds and saving 20% on costs compared to RPE liners (Landscape Ontario, 2024).

4.2 PVC Liner – Aquaculture Ponds

In fish and shrimp farming, PVC liners ensure 95% water retention and are used in 15% of aquaculture projects. A 2025 Thai project deployed a 0.75 mm fish-safe PVC liner at $0.50/m², supporting a 10% increase in fish yield (Aquaculture Magazine, 2025).

4.3 PVC Liner – Irrigation Canals and Reservoirs

PVC liners reduce seepage by 95% in irrigation systems, used in 20% of agricultural projects. A 2023 Indian canal project used a 0.75 mm PVC liner at $0.45/m², saving 15 million liters of water annually (BPM Geosynthetics, 2025).

4.4 PVC Liner – Wastewater Treatment Ponds

PVC liners contain effluent in 10% of wastewater facilities, preventing groundwater contamination. A 2024 U.S. project used a 1.0 mm reinforced PVC liner at $0.80/m², achieving 99% impermeability (EPA, 2024).

4.5 PVC Liner – Landfill Liners

As secondary liners, PVC liners prevent leachate migration in 5% of landfill projects. A 2024 European landfill used a 1.0 mm reinforced PVC liner at $1.00/m², meeting EU regulations (Geosynthetics Magazine, 2024).

4.6 PVC Liner – Industrial Water Storage

PVC liners are used in chemical and industrial ponds, resisting pH 2–12. A 2025 Australian project used a 1.0 mm PVC liner at $0.90/m² for chemical containment, ensuring zero leakage (Solmax, 2025).

5. Specifications of PVC Liners

PVC liners are engineered to meet industry standards, ensuring performance across applications:

  • Roll Sizes: 3–15 m wide, 10–60 m long, minimizing seams and installation time by 20%.
  • Seam Strength: Heat or solvent welds achieve 85–90% of parent material strength (ASTM D6392).
  • Lifespan: 15–20 years exposed, 30–50 years buried, depending on UV exposure.
  • Environmental Compliance: Meets NSF/ANSI 61 for potable water and EPA standards for waste containment.
  • Weight: 0.5–2 kg/m², 50% lighter than HDPE, easing transport and installation.

These specifications ensure 95% containment efficiency and 20% cost savings compared to clay liners (Geosynthetic Institute, 2024).

6. Installation Process of PVC Liners

Proper installation is critical to PVC liner performance, reducing failure risks by 20% (BPM Geosynthetics, 2025). Below is a step-by-step guide:

Site Preparation

  • Clearing: Remove debris, rocks, and roots, costing $0.20–$0.50/m².
  • Grading: Compact subgrade to 95% Proctor density to prevent settlement.

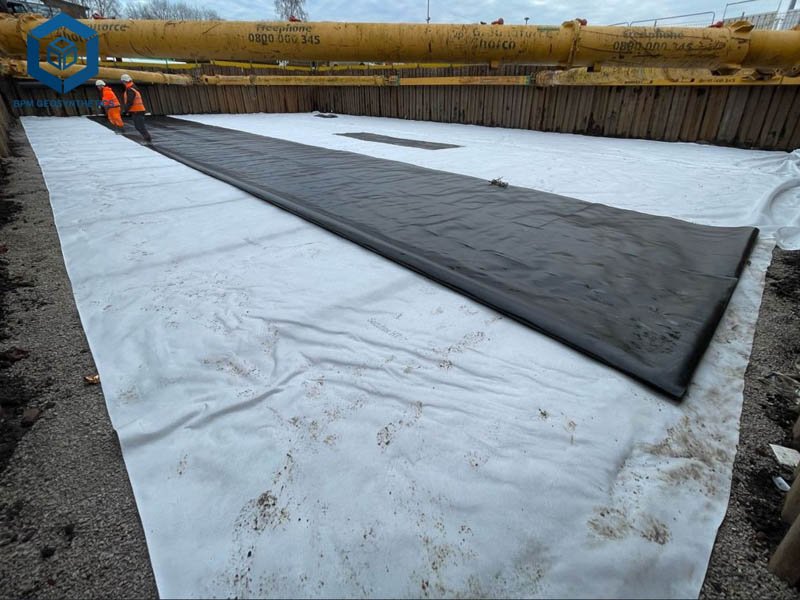

  • Geotextile Underlay: Use 100–200 GSM non-woven geotextile ($0.20–$0.50/m²) to reduce punctures by 95%.

Liner Deployment

  • Unrolling: Deploy rolls using spreader bars, ensuring 4–6-inch overlaps.
  • Anchoring: Secure with sandbags, stakes, or trenches to prevent movement.
  • Inspection: Check for defects before seaming, ensuring 99% integrity.

Seaming and Welding

  • Solvent Welding: Used for PVC, achieving 85–90% bond strength, costing $0.10–$0.30/m².
  • Heat Welding: Suitable for thicker liners, adding $0.20–$0.50/m².
  • Testing: Air pressure or vacuum testing (ASTM D6392) detects 99% of seam defects.

Quality Control

  • Thickness Verification: Confirm thickness with gauges (ASTM D5199).
  • Leak Detection: Use dye or water tests, adding $0.05–$0.10/m².
  • Traceability: Retain samples for 3–5 years for quality assurance.

Post-Installation

  • Covering: Apply 6–12 inches of soil or gravel for buried liners or leave exposed for UV-resistant liners.
  • Inspections: Annual checks reduce maintenance costs by 15% (Solmax, 2025).

Certified installers and adherence to GRI-GM17 standards ensure 95% reliability (Geosynthetic Institute, 2024).

7. Advantages of PVC Liners

PVC liners offer significant benefits over traditional materials like concrete or clay:

  • Cost-Effectiveness: $0.30–$1.50/m², 20–30% cheaper than HDPE or concrete liners (BPM Geosynthetics, 2025).
  • Flexibility: 200–400% elongation adapts to irregular surfaces, reducing stress cracking by 30%.
  • Ease of Installation: Lightweight and weldable, reducing labor costs by 25% (World of Water, 2025).
  • Chemical Resistance: Resists pH 2–12, ensuring 90% performance in wastewater and industrial applications.
  • Environmental Safety: Non-toxic options support fish-safe aquaculture and potable water storage.

These advantages make PVC liners a preferred choice in 20% of geomembrane projects globally (Grand View Research, 2024).

8. Project Case Study: PVC Liner for Aquaculture Pond

In 2024, a Thai aquaculture project installed a 0.75 mm fish-safe PVC liner for a 5,000 m² shrimp pond to prevent seepage and ensure water quality. Priced at $0.50/m², the liner increased shrimp yield by 10% and saved 95% of water compared to unlined ponds. Total costs included:

  • Material: $0.50/m² x 5,000 m² = $2,500
  • Geotextile Underlay: $0.30/m² x 5,000 m² = $1,500
  • Installation Labor: $0.40/m² x 5,000 m² = $2,000
  • Site Preparation: $0.20/m² x 5,000 m² = $1,000
  • Freight and Testing: $1,000
  • Total: $8,000 ($1.60/m² or $0.15/sq.ft.)

The project used standard 6 m x 50 m rolls, reducing seams by 15%, and achieved 99% water retention (Aquaculture Magazine, 2025).

9. Factors Influencing PVC Liner Price

PVC liner prices range from $0.30 to $1.50/m², with installed systems costing $1.00–$3.00/m². Key factors include:

Material Type

  • Standard PVC: $0.30–$0.80/m², used in low-stress applications like ponds.
  • Reinforced PVC: $0.50–$1.50/m², for wastewater and landfills.
  • Fish-Safe PVC: $0.40–$1.00/m², for aquaculture.
  • Textured PVC: $0.50–$1.20/m², for sloped applications.

Raw material costs increased by 5–7% in 2024 due to oil price fluctuations (BPM Geosynthetics, 2025).

Thickness

Thicker liners cost more but offer greater durability:

  • 2–0.5 mm: $0.30–$0.60/m², for decorative ponds.
  • 75–1.0 mm: $0.50–$1.00/m², for irrigation and aquaculture.
  • 5–2.0 mm: $0.80–$1.50/m², for wastewater and landfills.

Thicker liners reduce puncture risks by 30% but increase costs by 20–25% (ASTM D4833).

Project Size and Order Volume

Bulk orders reduce costs:

  • Small Orders (<1,000 m²): $0.50–$1.50/m².
  • Bulk Orders (>10,000 m²): $0.30–$1.00/m², with 10–15% discounts.

A 10,000 m² project can save $1,000–$3,000 (Favourite Fab, 2025).

Geographic Location

Prices vary by region:

  • North America/Europe: $0.50–$1.50/m², due to high labor and compliance costs.
  • Asia-Pacific: $0.30–$1.00/m², lower due to local production (Alibaba, 2025).
  • India: INR 25–80/m² ($0.30–$0.95/m²), competitive due to scale (Virendera Textiles, 2025).

Freight adds $0.10–$0.20/m² for international orders (seair.co.in, 2025).

Manufacturing Processes

  • Calendaring: Produces uniform PVC liners, reducing costs by 10%.
  • Reinforcement: Adds 10–20% to costs for scrim integration.
  • UV Stabilization: Increases costs by 5–10% for enhanced durability.

Automation reduced manufacturing costs by 8% in 2024 (BPM Geosynthetics, 2025).

Certifications

Certified liners (GRI-GM17, ISO 9001) cost 10–15% more ($0.05–$0.20/m²) but ensure 95% reliability (Geosynthetics Magazine, 2024).

Installation Costs

Installation adds 30–50% to costs:

  • Labor: $0.20–$0.50/m², higher in urban areas.
  • Geotextile Underlay: $0.20–$0.50/m².
  • Welding/Testing: $0.10–$0.30/m².

Certified installers reduce failure risks by 20% (Solmax, 2025).

Waterproof Geomembrane PVC Liner for Reservoir
What Is LLDPE Liner and Its Applications

10. Comparison of PVC Liners with Other Geomembranes

PVC liners are compared to HDPE and LLDPE geomembranes:

Parameter PVC Liners HDPE Liners LLDPE Liners
Cost per m² $0.30–$1.50 $0.50–$3.00 $0.40–$2.00
Tensile Strength 6–20 MPa 30–53 MPa 10–30 MPa
Elongation 200–400% 400–700% 800–1000%
Hydraulic Conductivity <1 x 10⁻¹¹ cm/s <1 x 10⁻¹² cm/s <1 x 10⁻¹¹ cm/s
Lifespan 15–50 years 20–50 years 15–30 years
Applications Ponds, canals Landfills, reservoirs Ponds, irregular terrains

PVC liners are 20–30% cheaper and more flexible than HDPE but less durable in high-stress applications (BPM Geosynthetics, 2025).

11. Cost-Saving Tips for PVC Liners

To optimize budgets:

  • Bulk Purchasing: Orders >10,000 m² save 10–15% (Favourite Fab, 2025).
  • Local Sourcing: Reduces freight costs by 10–15% (seair.co.in, 2025).
  • Standard Sizes: Use 6–15 m rolls to minimize seams, saving 5–10%.
  • Match Thickness: Use 0.2–0.5 mm liners for low-stress applications to save 20–25%.
  • Certified Installers: Extend lifespan by 20%, saving $0.20–$0.50/m² (Solmax, 2025).

12. Conclusion

PVC liners, priced at $0.30–$1.50/m², offer a cost-effective, flexible solution for water and waste containment in decorative ponds, aquaculture, irrigation, wastewater, and landfill applications. With a hydraulic conductivity of <1 x 10⁻¹¹ cm/s, 200–400% elongation, and a 15–50-year lifespan, they ensure 95% seepage control and 90% environmental compliance. By selecting certified suppliers like BPM Geosynthetics matching liner specifications to project needs, and leveraging bulk discounts, stakeholders can save 10–25% while achieving 95% reliability. Contact BPM Geosynthetics for custom quotes and technical support to ensure successful, sustainable containment solutions.
