Pet Woven Geotextile Fabric is woven geo fabric made from high tenacity, low elongation material of multifilament polyester yarns to form a stable structure. BPM brand pet woven geotextile fabric is woven and blended by individual multifilament yarns woven together into a stable fabric structure with a superior combination of mechanical and hydraulic properties. Our pet woven geotextile fabric series has excellent resistance to biological and chemical environments normally found in soils and are stable against short-term exposure to ultraviolet radiation. The woven geotextile fabric is widely used for reinforcement of embankments, retaining structures, steep slopes, linear constructions, landfills, waste deposits, etc.
Pet Woven Geotextile Fabric
Description
Woven geotextile fabric pet is woven geo fabric made from high tenacity, low elongation material of multifilament polyester yarns to form a stable structure. BPM brand pet woven geotextile fabric is woven and blended by individual multifilament yarns woven together into a stable fabric structure with a superior combination of mechanical and hydraulic properties. Our pet woven geotextile fabric series has excellent resistance to biological and chemical environments normally found in soils and are stable against short-term exposure to ultraviolet radiation. The woven geotextile fabric is widely used for reinforcement of embankments, retaining structures, steep slopes, linear constructions, landfills, waste deposits, etc.
High Quality Pet Woven Geotextile Fabric
Pet woven geotextile fabric specifications
| Property | Unit | BPM100-50 | BPM300-50 | BPM500-50 | BPM600-50 | BPM1200-50 |
|---|---|---|---|---|---|---|
| Ultimate Tensile Strength MD | KN/m | 100 | 300 | 500 | 600 | 1200 |
| Ultimate Tensile Strength CD | KN/m | 50 | 50 | 50 | 50 | 50 |
| Strain at short term strength | % | 10 | 12 | 12 | 12 | 12 |
| Elongation | % | 30 | 30 | 30 | 30 | 30 |
| Apparent Opening Size | mm | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| UV resistance ( Retained 500 Hours) | % | 70 | 70 | 70 | 70 | 70 |
| Width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Height | m | 100 | 100 | 100 | 100 | 75 |
| Roll weight | Kg | 140 | 320 | 480 | 580 | 810 |
Pet woven geotextile fabric features
- High tensile strength
- Low elongation, low creep
- High long-term design strength
- Creep resistance
- Less differential settlement
- Cost effective
- Ease of installation

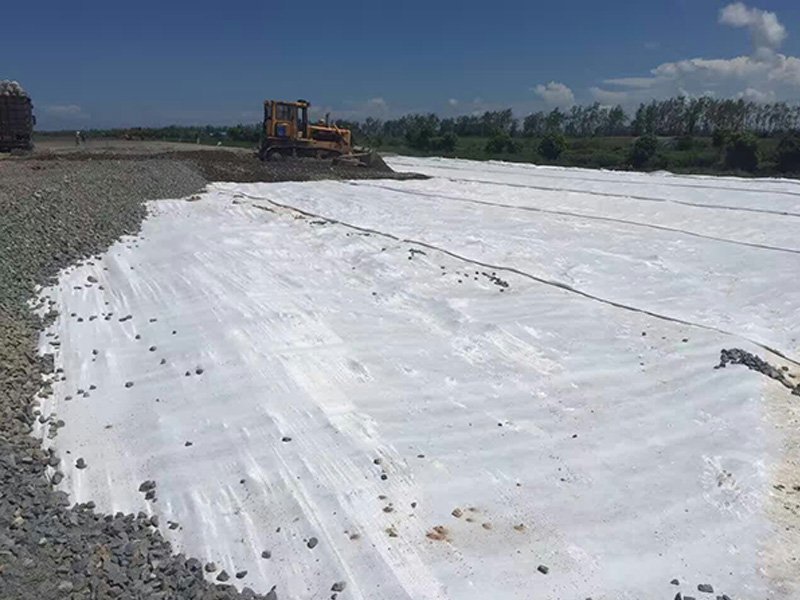

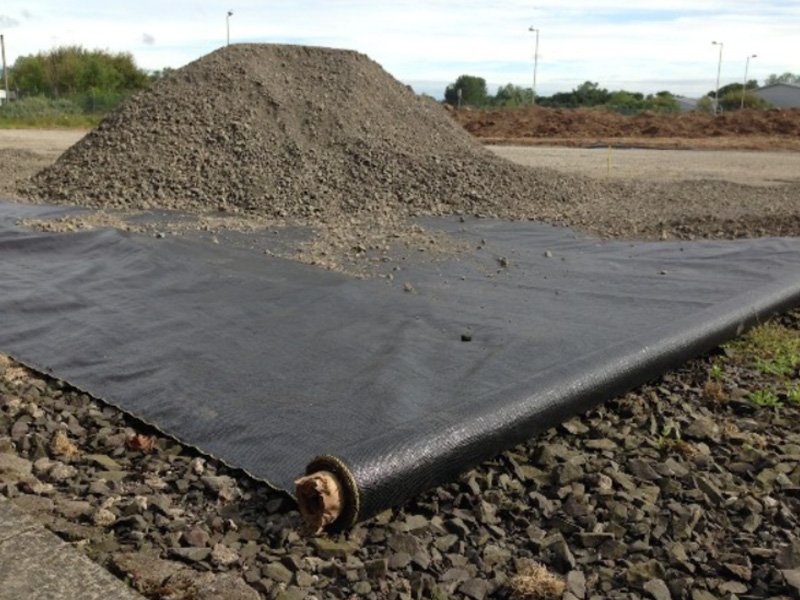

Pet woven geotextile fabric applications
- Embankment reinforcement
- Coastal and side slope production
- Sub-grade soft foundation treatment
- Railway, road, tunnel, coastal mud flat
- Reclamation and environmental project
