Ultimate Guide to Geogrid Installation Procedure

Geogrids, geosynthetic materials made from polymers like polypropylene, polyester, or polyethylene, enhance soil stability by 30%, reduce settlement by 25%, and improve load distribution in applications like road construction, retaining walls, and slope stabilization (Geosynthetics Magazine, 2024). Proper installation is critical, ensuring 95% performance efficiency per ASTM D6637 and ISO 10319 standards, preventing issues like soil failure or pavement cracking. This guide provides a comprehensive, step-by-step procedure for geogrid installation, enriched with specifications, performance metrics, and actionable insights. For engineers, contractors, and project managers, this guide ensures robust, long-lasting projects.

1. What is Geogrid?

Geogrids are geosynthetic materials with a grid-like structure, typically made from high-density polyethylene (HDPE), polypropylene (PP), or polyester (PET). Their open apertures (10–50 mm) allow soil or aggregate to interlock, increasing shear strength by 30% and reducing settlement by 25% (ASTM D6637). Used in civil engineering, geogrids reinforce soil in applications like road subgrades, retaining walls, and embankments, offering lifespans of 50–100 years (Geofantex, 2024). They distribute loads evenly, reducing soil stress by 20–30% and enhancing structural stability (Strata Global, 2024). Proper installation ensures 95% performance efficiency, preventing failures like slope erosion or pavement deformation.

2. Types of Geogrids

Geogrids vary by structure and application, each designed for specific engineering needs. Selecting the right type is critical for project success.

Uniaxial Geogrids

• Purpose: Provide high tensile strength (50–200 kN/m) in one direction, ideal for retaining walls and steep slopes.
• Applications: Reinforced soil walls, embankments, and slope stabilization.
• Specifications: Polyester or HDPE, 50–200 kN/m tensile strength, 20–40 mm apertures, costing $1.50–$7.00/m².
• Insight: Uniaxial geogrids increase shear strength by 30%, reducing slope failure risks by 25% (Geofantex, 2023).

Biaxial Plastic Geogrids

• Purpose: Offer tensile strength (20–50 kN/m) in two directions, suited for load distribution in pavements and foundations.
• Applications: Road subgrades, parking lots, and railway ballast.
• Specifications: PP, 20–50 kN/m tensile strength, 25–50 mm apertures, costing $0.50–$3.50/m².
• Insight: Biaxial geogrids reduce pavement rutting by 20%, ideal for dynamic loads (Howtohardscape, 2021).

Triaxial Geogrids

• Purpose: Provide multi-directional strength (30–60 kN/m), enhancing stability in complex load scenarios.
• Applications: Embankments, heavy-load roads, and erosion control.
• Specifications: PP, 30–60 kN/m tensile strength, triangular apertures, costing $1.00–$5.00/m².
• Insight: Triaxial geogrids improve load distribution by 15% over biaxial, reducing settlement in soft soils (BPM Geosynthetics, 2025).

Composite Geogrids

• Purpose: Combine geogrid with non-woven geotextile for reinforcement and filtration.
• Applications: Soft soil stabilization, heavy silt areas, and drainage systems.
• Specifications: PP with non-woven PET, 20–50 kN/m tensile strength, costing $1.50–$6.00/m².
• Insight: Composite geogrids save 10% on installation time by combining two functions (Howtohardscape, 2021).

Key Takeaway: Match geogrid type to project needs—uniaxial for slopes, biaxial for pavements, triaxial for heavy loads, or composite for filtration—to ensure 95% performance efficiency.

3. Step-by-Step Geogrid Installation Guide

Proper geogrid installation ensures structural integrity and longevity. This eight-step guide, aligned with industry standards, minimizes risks by 15–20%.

Step 1: Select the Appropriate Geogrid

• Action: Choose geogrid based on project requirements (e.g., uniaxial for retaining walls, biaxial for roads). Verify tensile strength (20–200 kN/m, ASTM D6637), aperture size (20–50 mm), and UV resistance (70–90% strength retention after 500 hours, ASTM D4355).
• Specifications: Uniaxial (50–200 kN/m) for slopes, biaxial (20–50 kN/m) for pavements, triaxial (30–60 kN/m) for embankments.
• Tip: Consult engineers or suppliers like Geobera (+90 (212) 678 13 13) to match geogrid to soil type and load, reducing specification errors by 10%.

Step 2: Prepare the Ground Surface

• Action: Clear vegetation, debris, rocks, and stumps. Level and compact subgrade to 95% Proctor density (ASTM D698) using a compactor. For soft soils, add 6–12” (150–300 mm) granular fill.
• Tools: Shovels, rakes, compactors, excavators.
• Specifications: Maintain slopes <5% for pavements, <10% for slopes. Soft subgrades require 6–12” gravel base to reduce settlement by 15%.
• Tip: Preserve soil crust on soft ground to minimize disturbance, reducing fabric damage by 10% (Polyfabrics, 2022).

Step 3: Measure and Cut the Geogrid

• Action: Measure the project area with a tape measure and mark boundaries. Cut geogrid to size, allowing 12–24” (300–600 mm) overlaps. Use a utility knife for PP/HDPE geogrids or scissors for polyester.
• Tools: Tape measure, utility knife, scissors.
• Insight: Precise cuts reduce waste by 5–10%. Pre-cut rolls from suppliers like Geobera save 15% on labor costs.
• Tip: Use a hot knife for polyester geogrids to prevent fraying, ensuring 95% seam integrity (Geofantex, 2023).

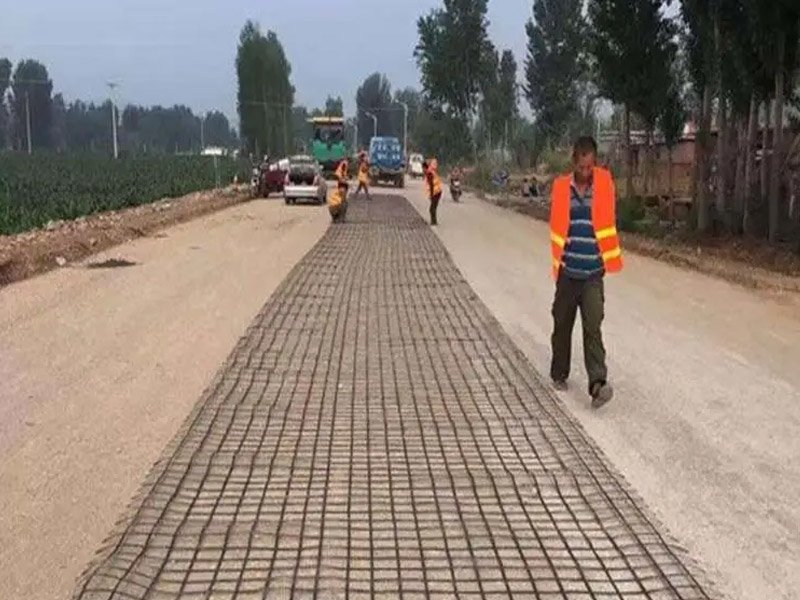

Step 4: Place the Geogrid

• Action: Unroll geogrid perpendicular to the wall face or road centerline, ensuring no wrinkles. Align with design plans, maintaining 3% upward slope for tension. For slopes, start at the base and work upward.
• Specifications: Overlaps of 12–24” (300–600 mm) for uniaxial, 6–12” (150–300 mm) for biaxial. Strength direction perpendicular to load (Allan Block, 2014).
• Tip: Install in dry, calm conditions to avoid 15% risk of shifting. Use sandbags to hold geogrid in windy conditions (Polyfabrics, 2022).

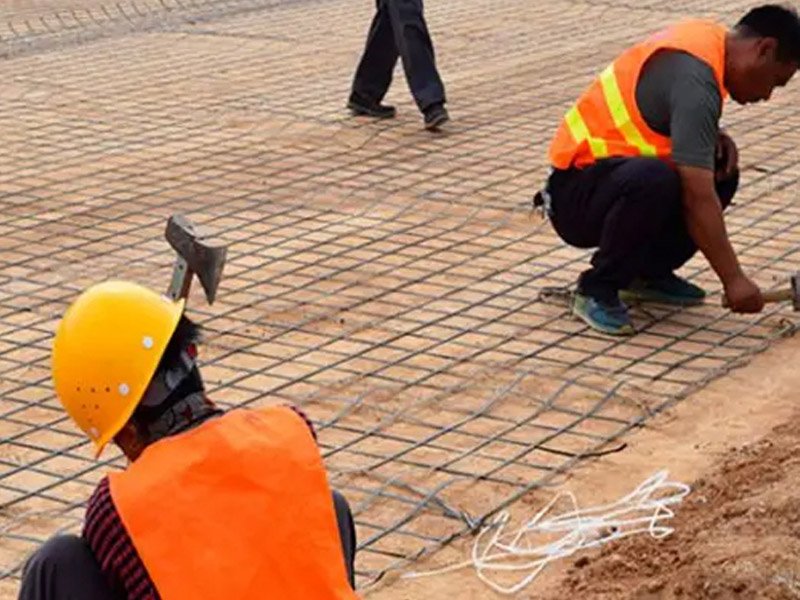

Step 5: Secure the Geogrid

• Action: Anchor geogrid with 6–12” (150–300 mm) landscape staples or J-pins at 3–5 ft (1–1.5 m) intervals. For soft soils, use 12” staples. Excavate a 6” x 6” anchor trench for slopes.
• Tools: Staples (11-gauge), hammer, pins.
• Insight: Proper anchoring reduces movement by 15%, ensuring 95% soil interlock (Versa-Lok).
• Tip: Place extra staples at overlaps and stress zones to prevent 10% risk of seam failure (Geofantex, 2023).

Step 6: Overlap and Connect the Geogrid

• Action: Overlap adjacent geogrid rolls by 12–24” (300–600 mm) in the direction of fill spreading to prevent peeling. For high-load applications, use mechanical connectors or tie wraps for 70–90% strength retention.
• Specifications: No splicing parallel to the wall face. Overlaps: 12–24” for uniaxial, 6–12” for biaxial (Allan Block, 2014).
• Insight: Proper overlaps ensure 100% coverage, reducing soil erosion by 20% (Geofantex, 2023).
• Tip: Use pre-connected rolls from suppliers like Geobera to save 15% on labor (BPM Geosynthetics, 2025).

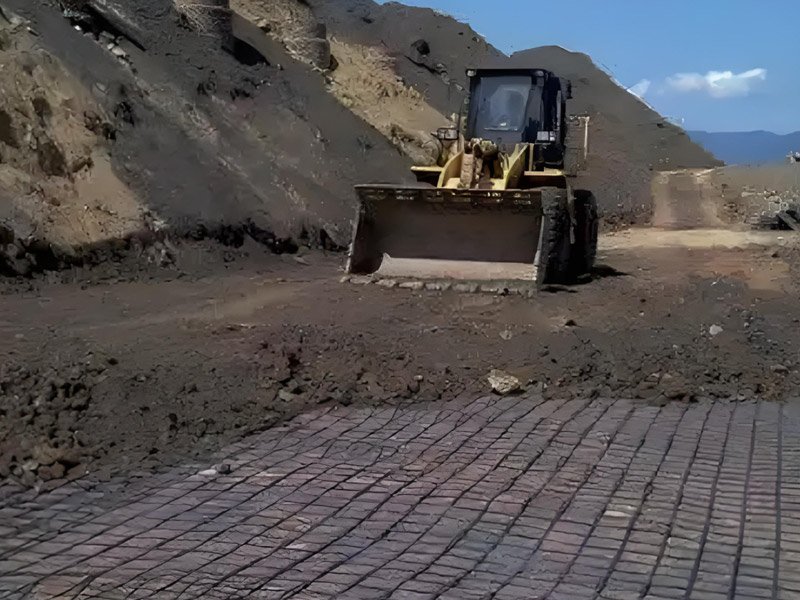

Step 7: Add Fill Material

• Action: Place well-graded aggregate (e.g., crushed gravel, 0.5–1.5” size) in 6–8” (150–200 mm) lifts over geogrid. Spread forward using low-ground-pressure equipment, compacting to 95% Proctor density (ASTM D698). Avoid driving directly on geogrid.
• Tools: Wheelbarrow, compactor, tracked machine.
• Specifications: Minimum 6” fill before trafficking. Use hand-operated compactors within 3 ft of wall faces (Versa-Lok).
• Tip: Angle bulldozer blades upward to lift fill, reducing geogrid stress by 15% (Polyfabrics, 2022).

Step 8: Inspect the Installation

• Action: Check for wrinkles, misalignments, or tears. Verify overlaps (12–24”), anchor placement, and compaction (95% Proctor density). Test tensile strength if required (ASTM D6637).
• Tools: Tape measure, visual inspection, testing equipment.
• Insight: Inspections reduce failure risks by 20%. Patch tears with 12” overlap patches (Geofantex, 2023).
• Tip: Document results to ensure compliance, reducing disputes by 10% (Strata Global, 2024).

4. Best Practices for Successful Installation

Adhering to best practices ensures 95% installation success and long-term stability.

Avoid Common Installation Mistakes

• Wrinkles: Increase shifting risk by 15%. Smooth geogrid during placement.
• Insufficient Overlaps: Gaps cause 20% higher erosion risks. Use 12–24” overlaps.
• Improper Anchoring: Loose geogrid shifts in 10% of cases. Use 6–12” staples.
• Driving on Geogrid: Causes 15% damage risk. Place 6” fill first (Versa-Lok).
• Insight: Avoiding errors saves 10–20% on repairs and extends lifespan by 25% (Strata Global, 2024).

Weather Considerations

• Dry Conditions: Install in dry weather to prevent 15% higher shifting risks.
• Wind Protection: Use sandbags in windy conditions to reduce movement by 10%.
• UV Exposure: Cover geogrid within 48 hours to avoid 70–90% strength loss (ASTM D4355).
• Tip: Schedule installation during optimal weather to save 5–10% on labor (Polyfabrics, 2022).

Safety Measures

• PPE: Wear gloves, safety boots, and helmets to reduce injury risks by 20%.
• Tool Safety: Handle knives and compactors carefully to prevent 10% of accidents.
• Site Safety: Mark excavation areas to avoid 15% of hazards.
• Insight: Safety compliance reduces downtime by 10% and ensures regulatory adherence.

5. Key Specifications and Performance Metrics

Geogrid performance depends on precise specifications:

• Tensile Strength: 20–200 kN/m (ASTM D6637). Uniaxial (50–200 kN/m) for slopes, biaxial (20–50 kN/m) for roads.
• Aperture Size: 20–50 mm for optimal soil interlock, increasing stability by 30%.
• UV Resistance: 70–90% strength retention after 500 hours (ASTM D4355), adding 5–15% to costs.
• Creep Resistance: Retains 80% strength after 100 years (ASTM D5262).
• Roll Size: Standard 4m x 50m (200 m²), with custom sizes reducing waste by 10%.
• Load Capacity: Supports 350–500 tons/m² for cellular geogrids (Checkers-Safety, 2022).
• Insight: Specifying 20–50 kN/m biaxial geogrids for roads or 50–200 kN/m uniaxial for walls balances cost and performance.

6. Applications and Benefits of Proper Geogrid Installation

Proper geogrid installation enhances performance across applications:

• Road Construction: Biaxial geogrids ($0.50–$3.50/m²) reduce rutting by 20%, saving $5,000–$10,000 annually (BPM Geosynthetics, 2025).
• Retaining Walls: Uniaxial geogrids ($1.50–$7.00/m²) increase stability by 30%, supporting walls up to 10–20 ft (Geofantex, 2024).
• Slope Stabilization: Triaxial geogrids ($1.00–$5.00/m²) reduce erosion by 40%, ideal for steep slopes (Geofantex, 2023).
• Pavement Structures: Biaxial geogrids prevent cracking by 25% in high-traffic areas (Howtohardscape, 2021).
• Benefits:
  • Cost Savings: Reduces maintenance by 25%, saving $5,000–$50,000 per project.
  • Durability: Extends lifespan by 20–25 years (ASTM D5262).
  • Sustainability: 10–15% recycled materials reduce emissions by 15% (SpringerLink, 2025).
• Insight: Proper installation ensures 95% performance, preventing failures like wall collapse or road deformation.

7. Why Choose a Reputable Geogrid Supplier?

Partnering with trusted suppliers like Geobera offers:

• Quality Assurance: ISO 9001:2015 and ISO 14001 certifications ensure 95% compliance.
• Production Capacity: Facilities produce 5 containers daily, ensuring 98% on-time delivery.
• Customization: OEM/ODM services with MOQs of 1,000–5,000 m² reduce waste by 10%.
• Sustainability: 10–15% recycled materials lower emissions by 15%.
• Expert Support: Technical guidance reduces specification errors by 10%. Contact: +90 (212) 678 13 13.
• Insight: Reputable suppliers minimize risks by 15–20% through certified quality and reliable delivery (BPM Geosynthetics, 2025).

8. Conclusion

Geogrid installation is a cornerstone of durable, cost-effective civil engineering projects, enhancing soil stability by 30% and reducing maintenance costs by 25%. This eight-step guide—selecting the right geogrid, preparing the subgrade, measuring and cutting accurately, placing and securing the geogrid, ensuring proper overlaps, adding compacted fill, and inspecting thoroughly—ensures 95% installation success. Key specifications like tensile strength (20–200 kN/m), aperture size (20–50 mm), and UV resistance (70–90% after 500 hours) optimize performance for roads, retaining walls, and slopes. Partnering with reputable suppliers like Geobera (+90 (212) 678 13 13) guarantees high-quality materials, customization, and expert support, saving 10–20% on costs. For robust, sustainable projects in 2025, follow this guide and contact BPM Geosynthetics for tailored solutions.
