Geomembrane liners are essential geosynthetic materials used in civil engineering, environmental, and industrial projects to prevent leakage, contamination, and erosion. These low-permeability synthetic membranes, made from materials like high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), or polyvinyl chloride (PVC), serve as reliable barriers in applications such as landfills, mining operations, wastewater treatment, aquaculture, and water containment. According to a 2023 market report, the global geosynthetics market, including geomembranes, is projected to reach $13.2 billion by 2027, driven by infrastructure growth and environmental regulations. However, one of the most common questions for project managers, engineers, and contractors is: How much does a geomembrane liner cost? As a critical component in ensuring environmental safety and project durability, understanding the cost structure of geomembrane liners is vital for budgeting and planning.

At its core, the cost of geomembrane liners ranges from $0.28 to $3.00 per square foot, depending on material type, thickness, project size, and installation requirements. However, this price can vary significantly based on several factors, including raw material quality, manufacturing standards, and site-specific conditions. In this comprehensive guide, we systematically analyze the cost of geomembrane liners from a manufacturer’s perspective, drawing on insights from industry leaders like BPM Geosynthetics. Whether you’re planning a small pond lining or a large-scale landfill project, this article provides detailed specifications, parameters, and practical advice to help you make informed purchasing decisions.

1. What Are Geomembrane Liners?

Geomembrane liners are flexible or semi-rigid synthetic sheets designed to control fluid, gas, or contaminant migration in human-made structures. Typically made from polymeric materials like HDPE, LLDPE, PVC, or ethylene propylene diene monomer (EPDM), they offer exceptional impermeability, chemical resistance, and durability. Common applications include:

  • Landfill Liners: Preventing leachate contamination of soil and groundwater.
  • Pond and Canal Liners: Ensuring water retention in aquaculture, irrigation, and reservoirs.
  • Mining Operations: Containing tailings and heap leach pads.
  • Wastewater Treatment: Lining lagoons and treatment ponds.
  • Environmental Protection: Secondary containment for oil, gas, and hazardous materials.

Key specifications include:

  • Thickness: 0.5–3 mm (20–120 mil)
  • Tensile Strength: 15–40 kN/m (ASTM D6693)
  • Puncture Resistance: 1.5–8 kN (ASTM D4833)
  • Roll Width: Up to 11.6 m (Atarfil’s widest rolls)
  • Lifespan: 20–100 years in buried applications, 10–20 years exposed (Geosynthetic Institute, 2023).

These properties make geomembranes critical for long-term performance, but their cost is influenced by multiple factors, which we’ll explore below.

1.5mm Pond Geomembrane for Landfill Dam
2mm HDPE Pond Geomembrane Liner Cost

2. How Much Does a Geomembrane Liner Cost?

The cost of a geomembrane liner typically ranges from $0.28 to $3.00 per square foot, including material costs but excluding installation and additional services. For example, a 0.5 mm HDPE liner for a small fish pond may cost $0.50–$1.00 per square foot, while a 2 mm HDPE liner for a landfill could reach $2.00–$3.00 per square foot. Installation, transportation, and site preparation can add 15–50% to the total project cost, depending on complexity. Below, we break down the key factors influencing geomembrane liner costs, supported by industry data and insights.

2.1 Geomembrane Liner Cost – Material Type

The choice of material significantly affects geomembrane liner costs due to differences in durability, flexibility, and chemical resistance. Common materials include:

2.1.1 High-Density Polyethylene (HDPE):

  • Cost: $0.50–$2.55 per square foot
  • Properties: High tensile strength (20–40 kN/m), chemical resistance, UV stability with carbon black additives.
  • Applications: Landfills, mining, wastewater treatment.
  • Advantage: Most durable, with lifespans of 40–100 years in buried applications (Geosynthetic Institute, 2023).
  • Example: BPM Geosynthetics’ GM13-standard HDPE liners, using virgin resin from Saudi Arabia, cost $1.35–$2.55 per square foot for 1.5–2 mm thickness.

2.1.2 Linear Low-Density Polyethylene (LLDPE):

  • Cost: $0.60–$2.50 per square foot
  • Properties: Greater flexibility, puncture resistance (1.5–7 kN), suitable for uneven terrains.
  • Applications: Pond liners, canal liners, environmental remediation.
  • Advantage: Easier to install on irregular surfaces, with lifespans of 20–50 years.
  • Example: GEOSINCERE’s LLDPE liners cost $0.90–$2.00 per square foot for 0.75–1.5 mm thickness.

2.1.3 Polyvinyl Chloride (PVC):

  • Cost: $0.60–$2.00 per square foot
  • Properties: High flexibility, easier welding, but less UV resistance.
  • Applications: Smaller ponds, decorative water features.
  • Advantage: Cost-effective for non-critical applications, with lifespans of 15–25 years.
  • Example: BTL Liners’ PVC liners are priced at $0.60–$1.50 per square foot but require covering for UV protection.

2.1.4 Ethylene Propylene Diene Monomer (EPDM):

  • Cost: $0.75–$2.50 per square foot
  • Properties: Synthetic rubber, highly flexible, UV-resistant.
  • Applications: Natural swimming ponds, roofing.
  • Advantage: Flexible and durable, but higher material costs.
  • Example: EPDM liners for small ponds cost $1.00–$2.50 per square foot due to specialized manufacturing.

HDPE is the most cost-effective for large-scale projects due to its durability and compliance with GRI-GM13 standards, while LLDPE and PVC are preferred for smaller, flexible applications.

2.2 Geomembrane Liner Cost – Thickness

Thicker geomembrane liners are more expensive due to increased material usage and enhanced performance. Common thicknesses and costs include:

  • 5 mm (20 mil): $0.28–$1.00 per square foot, used in aquaculture or irrigation ponds with low mechanical stress.
  • 75–1 mm (30–40 mil): $0.50–$1.50 per square foot, suitable for canals and reservoirs.
  • 5 mm (60 mil): $1.00–$2.00 per square foot, standard for wastewater treatment and mining.
  • 2–3 mm (80–120 mil): $1.50–$3.00 per square foot, used in landfills and hazardous waste containment.

Thicker liners (e.g., 2 mm) offer higher puncture resistance (up to 8 kN) and durability, making them ideal for high-risk applications like landfills, where they can last 40–60 years. For example, BPM Geosynthetics recommends 0.5 mm HDPE liners for fish ponds to balance cost and performance, while 1.5–2 mm liners are standard for mining projects.

2.3 Geomembrane Liner Cost – Project Size and Scale

The size of the project influences cost per square foot due to economies of scale. Key considerations include:

  • Small Projects (<10,000 square feet): Higher per-square-foot costs ($1.00–$3.00) due to custom fabrication and setup fees. For example, a backyard pond liner may cost $1.50–$2.50 per square foot.
  • Large Projects (>50,000 square feet): Lower costs ($0.50–$2.00 per square foot) due to bulk purchasing and installation efficiencies. Industry data shows a 10–20% cost reduction for large-scale projects like landfills or reservoirs (Geosynthetic Institute, 2023).
  • Custom Sizes: Irregular shapes or non-standard dimensions increase costs by 15–25% due to additional cutting and welding.

For instance, a 100,000-square-foot landfill project using 1.5 mm HDPE liners may cost $1.00–$1.50 per square foot, while a 5,000-square-foot pond liner could cost $1.50–$2.00 per square foot.

2.4 Geomembrane Liner Cost – Installation Method and Labor

Installation is a significant cost component, often accounting for 20–50% of the total project budget. Factors include:

  • Installation Techniques:
  • Welding: Hot wedge or extrusion welding ensures seamless joints, costing $0.30–$0.75 per square foot due to skilled labor and equipment (e.g., geomembrane rollers, welders). Welded liners reduce long-term maintenance by 15–25% (Geosynthetic Institute, 2023).
  • Adhesive Bonding or Mechanical Fastening: Simpler methods cost $0.10–$0.30 per square foot but are less durable, suitable for temporary or low-risk applications.
    • Labor Costs: Skilled labor is critical to avoid punctures or seam failures, which can reduce liner lifespan by 10–20%. In North America and Europe, labor costs are higher ($30–$50/hour), while in Asia, they may be $10–$20/hour, affecting total costs.
    • Site Conditions: Uneven terrain or remote locations require additional preparation (e.g., grading, geotextile underlays), adding $0.20–$0.50 per square foot. Cold climates may necessitate heating equipment, increasing costs by 10–15%.

For example, EarthShield emphasizes that improper installation can reduce liner lifespan, recommending skilled crews to ensure quality. A welded 1.5 mm HDPE liner installation for a landfill may cost $0.50–$1.00 per square foot, including labor and equipment.

2.5 Geomembrane Liner Cost – Raw Material Quality

The quality of raw materials directly impacts both initial and lifetime costs. Key considerations include:

  • Virgin vs. Recycled Resin:
  • Virgin Resin: Used by manufacturers like BPM Geosynthetics and GEOSINCERE, virgin HDPE resin ensures high performance, with lifespans of 40–100 years. Costs are higher ($0.50–$2.55 per square foot) but reduce maintenance by 20–30%.
  • Recycled Resin: Lower initial costs ($0.28–$1.00 per square foot) but poor quality, with lifespans of 5–10 years and higher failure rates. Recycled liners may release harmful chemicals, unsuitable for environmental projects.
    • Additives: UV stabilizers, antioxidants, and carbon black increase costs by 5–10% but extend lifespan by 15–20%. For example, BPM’s GM13-standard liners use imported Saudi Arabian resin for superior UV resistance.

Using virgin resin is critical for large-scale projects like landfills, where failure can lead to environmental damage and repair costs exceeding $10,000 per incident.

2.6 Transportation and Logistics

Transporting geomembrane liners, especially large rolls (e.g., 8 m x 100 m), adds to costs:

  • Distance: Shipping to remote sites (e.g., mining operations) can cost 2–3 times more than urban deliveries, adding $0.10–$0.30 per square foot.
  • Packaging: Custom packaging (e.g., black or white woven bags) and handling equipment (e.g., forklifts) increase costs by 5–10%.
  • Geographical Variations: Prices are lower in Asia ($0.28–$2.00 per square foot) due to proximity to resin production, while North America and Europe face higher costs ($0.50–$3.00) due to regulations and labor.

For example, BPM Geosynthetics’ Tai’an plant near major highways reduces shipping costs for Asian clients, offering competitive pricing.

2.7 Maintenance and Lifetime Costs

While initial costs are critical, lifetime costs determine long-term value. Key factors include:

  • Maintenance: High-quality HDPE liners require minimal maintenance, with inspections costing $500–$2,000 annually for large projects. Repairs for punctures or tears cost $1,000–$5,000 per incident.
  • Lifespan: Virgin HDPE liners last 40–100 years in buried applications, while PVC and EPDM last 15–25 years. Recycled liners fail within 5–10 years, increasing replacement costs.
  • Failure Costs: A failed liner in a landfill can lead to environmental fines ($10,000–$100,000) and remediation costs, making virgin resin liners more cost-effective.

For example, a 0.5 mm HDPE liner for a fish pond may cost $0.50 per square foot upfront but last 20–30 years with minimal maintenance, while a recycled liner may fail within 5 years, doubling lifetime costs.

3. How to Choose the Right Geomembrane Liner

Selecting a geomembrane liner involves balancing cost, performance, and project requirements. Here are key considerations:

3.1 Assess Project Requirements

Match liner specifications to application needs:

  • Aquaculture: 0.5–0.75 mm HDPE or LLDPE liners ($0.50–$1.50 per square foot) for cost-effective water retention.
  • Landfills: 1.5–2 mm HDPE liners ($1.00–$2.55 per square foot) for high strength and chemical resistance.
  • Mining: Textured 1.5–2 mm HDPE liners ($1.50–$3.00 per square foot) for slope stability.

3.2 Prioritize Quality

Choose virgin resin liners from reputable manufacturers like BPM Geosynthetics or GEOSINCERE, certified to GRI-GM13 or GM17 standards. Avoid recycled materials for critical applications to prevent failures.

3.3 Evaluate Installation Needs

Hire skilled crews for welding and site preparation to ensure durability. For example, EarthShield’s professional installation services reduce seam failures by 20%.

3.4 Consider Long-Term Costs

Invest in thicker, high-quality liners for projects requiring longevity. A 1.5 mm HDPE liner may cost more upfront but saves 20–30% in maintenance and replacement costs over 50 years.

3.5 Compare Suppliers

Request quotes from multiple suppliers, comparing material quality, certifications, and support. BPM Geosynthetics offers custom solutions and competitive pricing, while GEOSINCERE provides flexible LLDPE options.

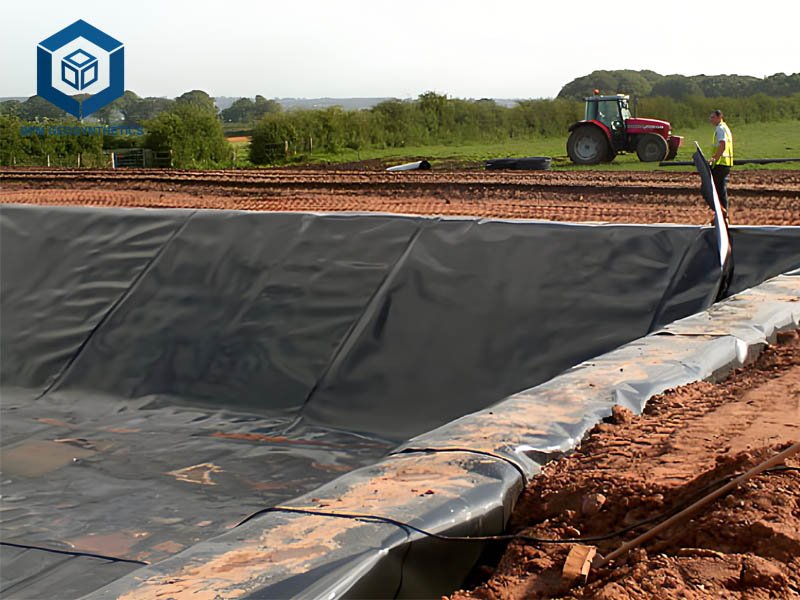

Ditch Liner Geomembrane for Artificial Lake

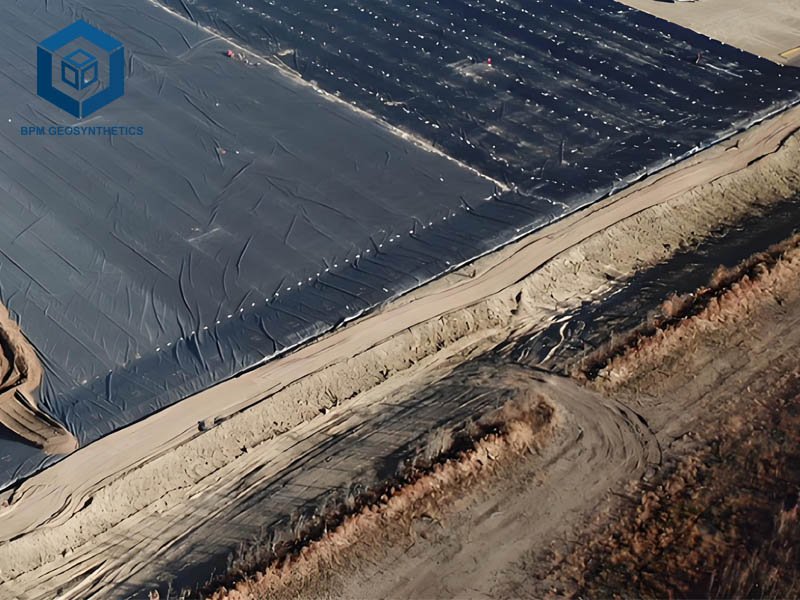

HDPE Geomembrane for Salt Crystal Pool

4. Industry Trends Affecting Geomembrane Liner Costs

The geomembrane industry is evolving, impacting costs and performance. Key trends include:

  • Rising Raw Material Costs: Petroleum-based HDPE resin prices fluctuate with global oil markets, potentially increasing costs by 10–20% during supply disruptions.
  • Wider Roll Widths: Manufacturers like Atarfil produce 11.6-meter rolls, reducing seams and installation costs by 15%.
  • Smart Geomembranes: Sensors for leak detection, as developed by BPM, add 5–10% to costs but reduce maintenance by 20%.
  • Sustainability: Recyclable geomembranes are emerging, but higher production costs ($0.50–$3.00 per square foot) may limit adoption.
  • Global Expansion: Asian manufacturers like BPM and GEOSINCERE offer lower prices ($0.28–$2.00 per square foot) due to proximity to resin production, challenging North American and European suppliers.

5. Conclusion

The cost of a geomembrane liner ranges from $0.28 to $3.00 per square foot, influenced by material type, thickness, project size, installation, and raw material quality. HDPE liners ($0.50–$2.55 per square foot) are the most cost-effective for large-scale projects like landfills, while LLDPE ($0.60–$2.50) suits flexible applications like ponds. Installation and logistics can add 15–50% to costs, emphasizing the need for skilled labor and proper planning. By choosing virgin resin liners from reputable suppliers like BPM Geosynthetics or GEOSINCERE, and prioritizing quality over initial cost, you can ensure long-term performance and minimize lifetime expenses. For tailored quotes and expert guidance, contact BPM Geosynthetics to meet your project’s specific needs.
