Polypropylene Woven Geotextile

//Polypropylene Woven Geotextile

Polypropylene Woven Geotextile

Woven Geotextile is made of virgin polypropylene fibers. BPM polyprolylene woven geotextile features high strength and low elongation to allow for maximum slope support, stabilization and erosion control. Our polyprolylene woven geotextile is relatively light in weight, strong tensile strength, smaller elongation as well as brilliant stability. It is widely used in roads, pavements, railroads, structures and water conservancy project, etc.



Description

Woven Geotextile is made of virgin polypropylene fibers. BPM brand polypropylene woven geotextile is woven and blended by at least two rows of parallel yarns (or tape yarn) using different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications. So our polypropylene woven geotextile is high in strength to allow for maximum slope support, stabilization and erosion control. Our Polypropylene woven geotextile is relatively light in weight, strong tensile strength, smaller elongation as well as brilliant stability. It is widely used in roads, pavements, railroads, structures and water conservancy project, etc.

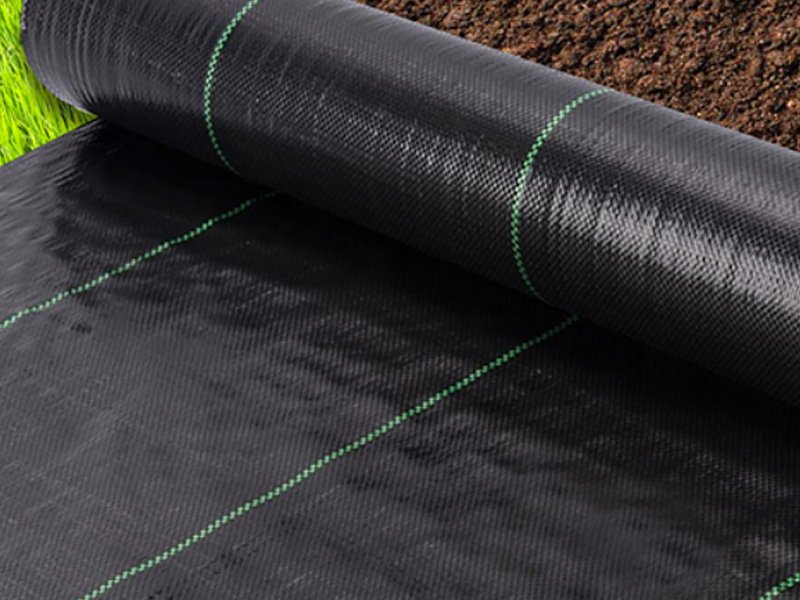

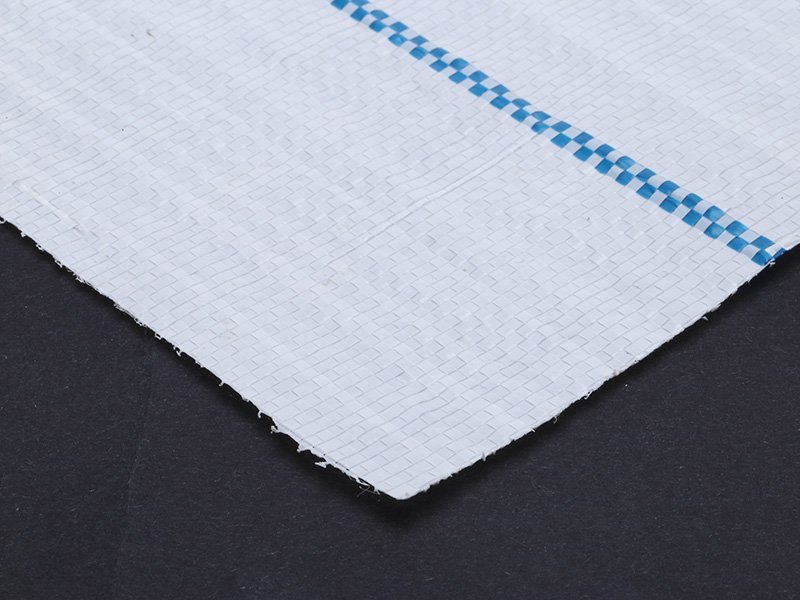

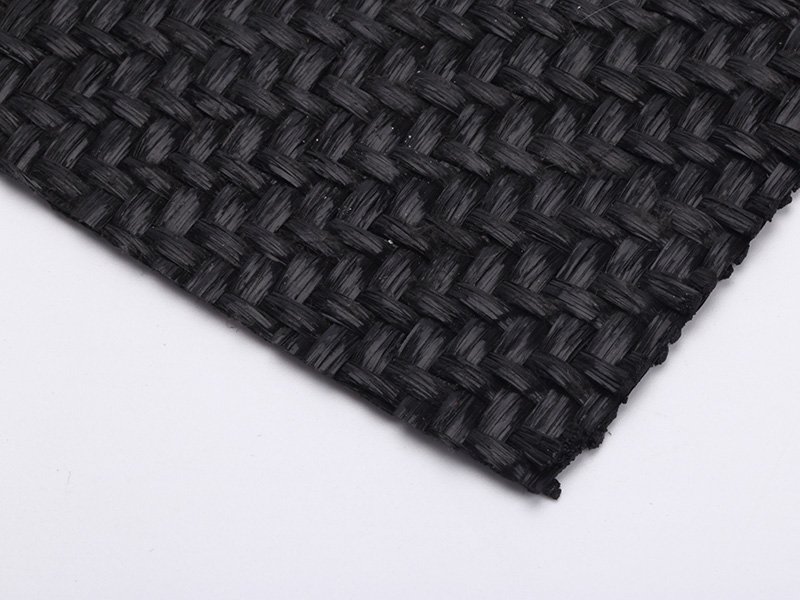

High Quality Polyprolylene Woven Geotextile Products

High Quality Polyprolylene Woven Geotextile Products

Polypropylene Woven Geotextile Specifications

Property BTW20-15 BPM30-20 BPM40-28 BPM50-35 BPM60-42 BPM80-56 BPM100-70
Breaking Strength in MD KN/m 20 30  40  50  60  80 100
Breaking Strength in MD KN/m  15 22 28  35  42  56  70
Elongation Rate 25%
Trapezoidal Tearing Strength, KN >= 0.2 0.27  0.34  0.41  0.48  0.6  0.72
 CBR Mullen Burst Strength KN  1.6  2.4 3.2 4 4.8 6 7.5
Vertical Permeability cm/s  10-110-4
Sieve Size O90 (O95) (mm) 0.07~0.50
Unit Weight (g/m2)  120 160 200 240  280 340 400
Variation ±10%

Polypropylene Woven Geotextile Features

  • High tensile strength
  • UV Resistant
  • low elongation
  • Resists Biological Degradation
  • Resistant to ultraviolet degradation
  • Chemically Inert
  • Strengthens and Supports Aggregates
  • Increases performance life of the road
  • Withstands tough construction loading
  • Ease of installation

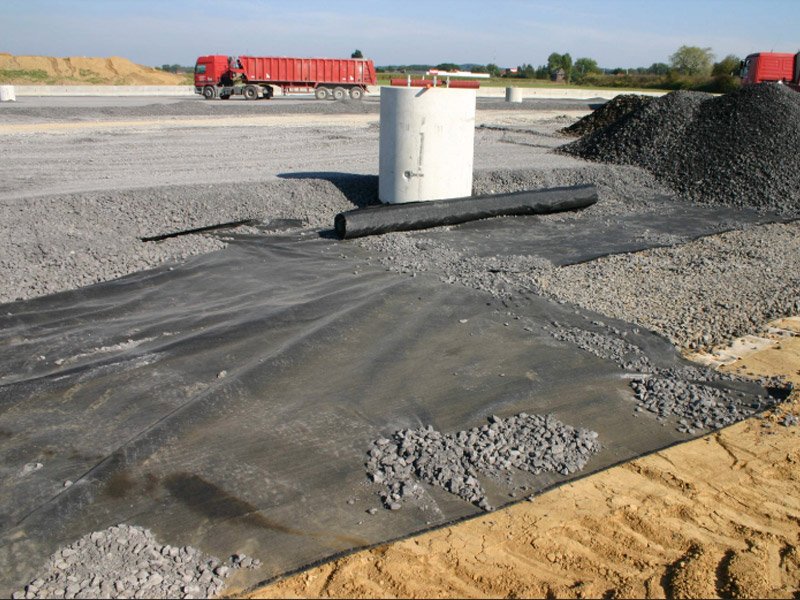

Polyprolylene Woven Geotextile Applications

  • Water conservancy project such as river bank, dam protection, diversion irrigation; reservoir seepage and consolidation project, Filling sandbags.
  • Road Project like soft foundation treatment, slope protection, road surface antireflection structure layer, drainage system, greenbelt.
  • Railway project like railway foundation reinforcement, embankment slope strengthen layer and tunnel lining layer.
Polyprolylene Woven Geotextile Applications

Polyprolylene Woven Geotextile Applications

About BPM

BPM had been specializing in delivering one stop geosynthetics products and solutions to worldwide customers since its foundation in 2007.  BPM had provided many types of effective and state of the art  geomembranes, geotextiles, geocells, geosynthetic clay liners (GCLs), drainage boards, geogrids to over 36 countries. Our main customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.

BPM is not only manufacturing best quality geosynthetics products but also providing professional design and installation service. OEM, ODM, custom development and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.
